Beginner’s Guide to PVC Pelletizing Extrusion Lines

PVC pelletizing extrusion lines, also simply known as PVC pelletizing lines and PVC pelletizing machines, are essential equipment for the plastic industry. These pelletizing extrusion lines are used to convert PVC resin or recycled materials into pellets, which are then used to produce a wide variety of plastic products. This blog post provides a detailed overview of PVC pelletizing, its mechanisms, and the PVC pelletizing machine.

Basic Principles of PVC Pelletizing Extrusion

This process is commonly employed in the plastics industry to create PVC pellets that can be used for various applications, such as molding, injection molding, or as a raw material for other plastic products. Here's how a typical PVC pelletizing extrusion line works:

  • Raw Material Preparation:

    The initial step involves preparing the raw PVC material. A PVC compound is concocted by blending PVC resin, plasticizers, and other additives in precise proportions. The resultant compound’s quality and composition will influence the final PVC pellets' characteristics.

  • Feeding System:

    The prepared PVC compound is fed into the pelletizing extrusion line, typically using a hopper or a feeding system that guarantees consistent delivery to the extruder.

  • Extrusion:

    The heart of a PVC pelletizing line is the extruder. This machine, a fundamental part of the PVC pelletizing process, houses a screw in a heated barrel. The PVC compound, upon entering the barrel, gets subjected to high heat and pressure owing to the screw's rotation, resulting in a homogeneous molten mass.

  • Die and Cutting System:

    PVC pelletizing extrusion lines use a die and cutting system to transform molten PVC compound into uniform-sized pellets. The die is a specially designed opening or mold that shapes the molten PVC into the desired pellet size and shape. The cutting system then cuts the material into pellets as it emerges from the die.

    The die face cutting system is a prevalent type in PVC pelletizing machines. A pair of synchronously rotating knives mounted on a flange cut materials into pellets at high speed. The system synergizes well with continuous granule production.

    PVC Pelletizing Extrusion Lines - Die and Cutting System

  • Cooling:

    The freshly cut PVC pellets are typically hot and need to be cooled rapidly to solidify. Cooling can be achieved through methods like air cooling or water cooling, depending on the specific requirements of the PVC formulation and pellet properties.

    Vibration coolers are a type of air cooler that uses vibration to help improve the cooling efficiency. The pellets rest on a vibrating bed, breaking the encompassing air boundary layer, thereby enabling efficient heat transfer and reduced cooling time.

    PVC Pelletizing Extrusion Lines - Cooling Systemem

  • Pellet Collection and Storage:

    Post-cooling, the PVC pellets are gathered and conveyed to a storage or packaging area. They might be processed through a vibrating screen or other equipment to eliminate dust or fines, ensuring the final product's quality.

Each step in the PVC pelletizing process plays a pivotal role in producing high-quality PVC pellets as per the requirements of various industries and applications. The use of advanced, efficient machinery like the twin-screw PVC pelletizing extrusion line significantly elevates this process’s effectiveness and consistency.

twin-screw PVC pelletizing extrusion line

The Essential Component : Extruders in PVC Pelletizing Extrusion Lines

A central element of the PVC pelletizing extrusion line is the extruder. This implement plays a key role in plasticizing PVC material within the assembly line. When it comes to extruders, we typically encounter two main types - single screw extruders and twin screw extruders.

  • Single Screw Extruders:

    As the most prevalent variant in PVC pelletizing extrusion lines, single screw extruders are straightforward and cost-effective. However, in terms of efficiency, they may not always match up to their twin screw counterparts.

    PVC pelletizing extrusion line - Single Screw Extruder

  • Twin Screw Extruders:

    Though more complex and financially demanding than single screw extruders, twin screw extruders present several clear benefits. These include increased production capacity, enhanced mixing, and the production of more uniform pellets.

    PVC pelletizing extrusion line - Twin Screw Extruders

Depending upon the specific requisites of the processing activity and the material involved, the choice between single screw and twin screw extruders is made. Each type provides its individual advantages, making the extruder a dynamic and adaptable component of the PVC pelletizing extrusion line.

The Role of Twin Screw Extruders in PVC Pelletizing Extrusion

Twin screw extruders serve as pivotal components in the PVC pelletizing extrusion process. These machines melt, mix, and homogenize various materials, including PVC resin, additives, and fillers. Beyond these tasks, twin screw extruders consistently generate a homogeneous extrudate, simplifying the pelletization process.

Here's an in-depth look into the specific functions of the twin screw extruder within the PVC pelletizing extrusion:

  • Melting:

    The twin screws rotate and create friction, which helps to melt the PVC resin. The screws also have channels that allow the heat from the barrel to be transferred to the resin.

  • Mixing:

    Interlocking twin screws initiate a mixing motion crucial in dispersing additives and fillers evenly throughout the resin. This meticulous distribution ensures the final pellets possess a uniform composition.

  • Homogenizing:

    The twin screws also help to homogenize the resin, which means that the temperature and viscosity are evenly distributed throughout the extrudate. This is important for ensuring that the pellets are consistent in size and shape.

Surpassing these primary functions, twin screw extruders boast the versatility to carry out additional operations such as degassing and cooling. These additional capabilities make these machines an all-inclusive solution, applicable in creating a broad spectrum of PVC products.

Advantages of Utilizing Twin Screw Extruders for PVC Pelletizing Extrusion

Choosing a twin screw extruder over a single screw one in PVC pelletizing extrusion has several notable advantages, including:

  • Increased Production Capacity:

    Twin screw extruders capably manufacture a large quantity of pellets within a compact timeframe.

  • Uniform Pellet Quality:

    The intermeshing of twin screws ensures the resultant pellets' uniformity in quality.

  • Energy Efficiency:

    Twin screw extruders are more energy-efficient than single screw extruders.

Factors to Consider When Selecting a PVC Pelletizing Extrusion Line

When selecting a PVC pelletizing extrusion line, there are a number of factors to consider, including:

Material Type and Properties: Different PVC resins and recycled materials possess unique properties, making it crucial to choose a machine compatible with the specific material you will be processing.

  • Material type and properties:

    Different PVC resins and recycled materials have different properties, so it is important to choose a machine that is compatible with the material you will be using.

  • Production capacity:

    The machine you choose should have a production capacity that meets your needs.

  • Product quality requirements:

    You should choose a machine that can produce pellets that meet your quality requirements.

  • The availability of spare parts and technical support

    It is important to choose a machine that has a good availability of spare parts and technical support. This will ensure that you can keep your machine running smoothly and efficiently.

  • The energy efficiency of the machine:

    The energy efficiency of the PVC pelletizing machines can have a significant impact on your operating costs. Choose a machine that is energy efficient to save money on your energy bills.

  • The maintenance requirements of the PVC Pelletizing Machine:

    The maintenance requirements of the machine can also vary. Choose a machine that is easy to maintain to save time and money.

Invest in a High-quality PVC Pelletizing Machines From a Reputable Manufacturer

TwinScrew is a leading provider of plastic pelletizing and compounding solutions. The company offers a comprehensive understanding of the entire process, from raw materials to finished pellets. TwinScrew has a global network and proprietary technologies, and can customize solutions to meet the unique needs of each customer. In addition, TwinScrew has an in-house production of core components for PVC pelletizing extrusion lines. This allows the company to ensure the highest quality and reliability of its products, and to meet the specific requirements of its customers.

TwinScrew : Helping Customers Manufacture High-Value, Low-Carbon Bioplastic Pellets

TwinScrew is a leading provider of renewable bioplastic solutions. We have a deep understanding of users' needs for new eco-friendly materials and a wealth of experience in processing renewable raw materials such as starch or cellulose. TwinScrew's customized pelletizing extrusion systems successfully manufacture bioplastic pellets from these raw materials. These pellets can be easily processed on their own or combined with other polymers to make bioplastic products. In the growing green plastics market, TwinScrew provides end-to-end solutions from raw materials to finished products to help customers manufacture high-value, low-carbon bioplastics. Since 2018, TwinScrew's extrusion and pelletizing systems have been used to manufacture low-carbon, sustainable products using extrusion or injection molding processes. Many of these products have been certified by leading organizations such as DIN CERTCO and successfully launched in the market.

Learn more: TwinScrew’s Bioplastic Solutions Enhance the Carbon Emission-lowering Efficiency

PVC pelletizing extrusion line - Low-Carbon Bioplastic Pellets

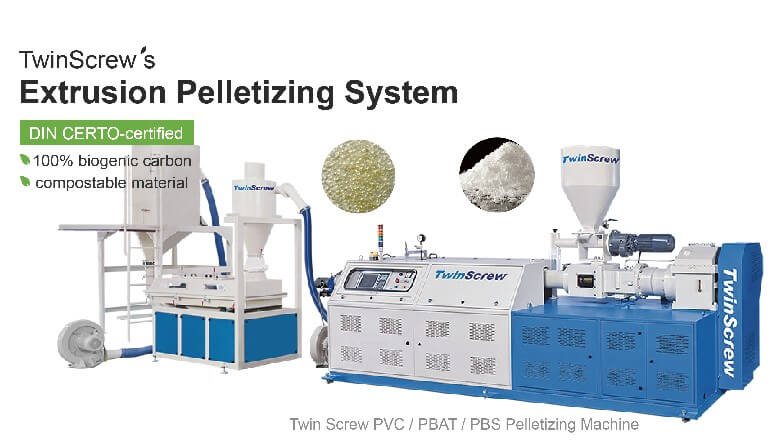

For more information, explore the Twin Screw PVC/PBAT/PBS Pelletizing Machine. Alternatively, reach out today to request a quote and kickstart your PVC Pelletizing Extrusion Line business.
